ISOFORT Wall Panel
Double Joint Concealed Fastener

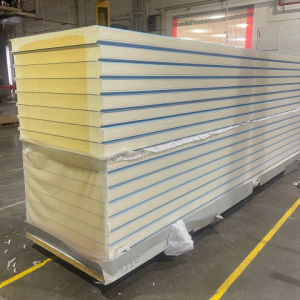

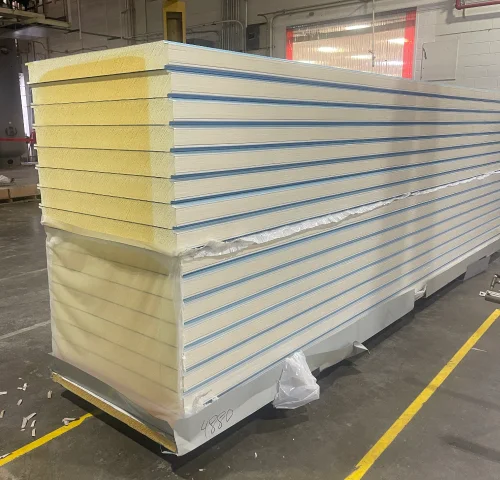

A double-steel sheet wall panel with polyisocyanurate rigid foam. Advanced double-joint system and internal and external mechanical seals ensure exceptional performance, including a high load capacity. External faces available in striated, box, and flat profiles.
Specifications
| Property | Details |
|---|---|
| Length | Maximum of 53′ |
| Width | Isofort Pro 36″ / Isofort 39″ / Isofort Plus 42″ |
| Thickness | 2½” — 3″ — 4″ — 5″ — 6″ — 8″ |
| Foam Core | PUR, PIR, PIR R+, Leaf (Best R value) 2.62 – 2.49 LB/FT³ |
| Joint Type | Tongue and Groove — Hidden |
| Gasket | Open Cell Gasket — Butyl available upon request |
| Steel Gauge | External: 22, 24, 26 — Internal: 22, 24, 26, 28 |
| Coating | Polyester Std. G60, Kynar G90, Stainless Steel 314 |
| Std. Coating | USDA Approved |
| Orientation | Vertical — Horizontal |
Key Benefits
- ✓Double joint advanced design
- ✓3 different standard widths
- ✓Internal and external mechanical seals
- ✓High thermal resistance for controlled temperatures
- ✓Available up to 8″ thick
Suitable For
- 🏭 Industrial: Warehouse, Factories, Distribution Centers
- ❄️ Cold Chain: Cold Chambers, Freezers, Cold Chain facilities
- 🏢 Commercial: Offices, Malls, Hotels, Healthcare facilities
- 🏛️ Architectural: Schools, Museums, Government, Transport hubs
- ✈️ Specialized: Airports, Green Building, Data Centers, Stadiums
Face Profiles Available
Box (Smooth) — Striated — Flat — Box (Embossed)
For striated and flat profiles, it is recommended to use 24 gauge or higher.
